Description

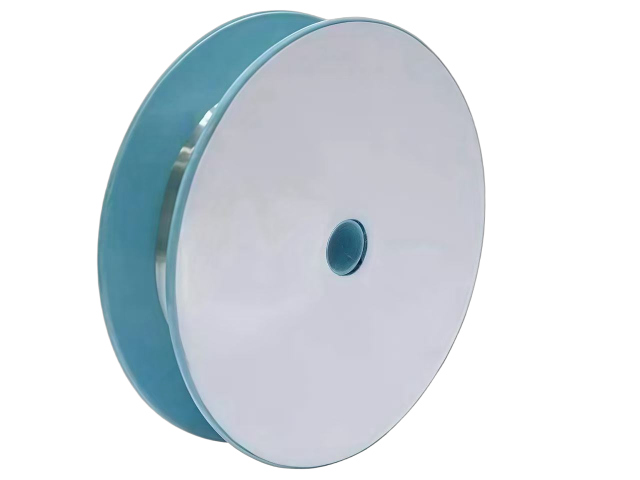

i-Labs’ DCF4 Non-Zero Dispersion-Shifted Fiber (NZ-DSF) is designed to operate over the entire
C-band. Because of its low dispersion, short-to-medium lengths of DCF4 fiber minimize the dispersion
added to the system. For low-dispersion systems, the dispersion from DCF4 can be compensated using
short lengths of other fibers that have positive dispersion, such as SMF-28 Ultra. Additionally, DCF4
fiber has a large effective area that allows the fiber to carry high optical power without significant
non-linear effects.
Specifications
| Dispersion Specifications |
| Dispersion @ 1550 nm |
-4.0 ps/nm •km |
| Dispersion Slope @ 1550 nm |
0.12 ps/nm² •km |
| Polarization Mode Dispersion |
≤0.1 ps/√km |
| a.These represent typical values |
| |
|
| General Specifications |
| Operating Wavelength |
1530 – 1565 nm (C-Band) |
| Mode Field Diameter @ 1550 nm |
8.85 to 9.60 µm |
| Effective Area @ 1550 nm |
65 µm |
| Cladding Diameter |
125.0 ±1.0 µm |
| Coating Diameter |
250 ± 5 µm |
| Coating-Cladding Concentricity |
<12 µm |
| Core-Clad Concentricity |
≤0.5 µm |
| Cutoff Wavelength |
≤1500 nm |
| Attenuation @ 1550 nm |
≤0.210 dB/km |
| Point Discontinuity @ 1550 nm |
≤0.05 dB |
| Optical Return Loss |
≥60 dB |
